Ocean Freight
20' General Container
❯
20' Refrigerated Container
❯
20' Open Top Container
❯
20' Flat Frame
❯
40' General Container
❯
40' High Cube Container
❯
40 ' Refrigerated High Cube Container
❯
40' Open Top Container
❯
40' Flat Frame
❯
45' High Cube Container
❯

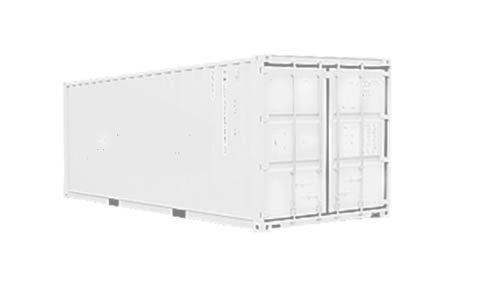

20' General Container
(20' * 8' * 8'6" DRY VAN)
*
Length
Width
Height
CBM
Inside
19' 4.1" / 5,896 mm
7' 8.6" / 2,352 mm
7' 10.2" / 2,393 mm
Overall
19' 10.5" / 6,058 mm
8' / 2,438 mm
8' 6" / 2,591 mm
Door Opening
7' 8.1" / 2,340 mm
7' 5.8" / 2,280 mm
1,173 cu.ft. / 33.2 cu.m.

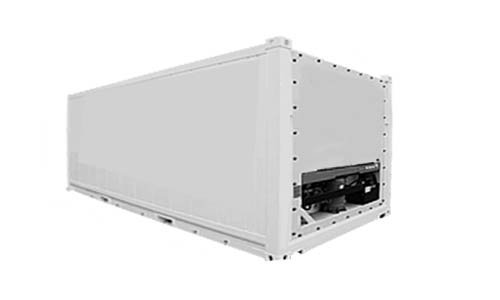

20' Refrigerated Container
(20' * 8' * 8'6" REEFER)
*
Length
Width
Height
CBM
Inside
19' 4" / 5,450 mm
7' 6.2" / 2,292 mm
7' 6.1" / 2,288 mm
Overall
17' 10.6" / 6,058 mm
8' / 2,438 mm
8' 6" / 2,591 mm
Door Opening
7'6.2" / 2,292 mm
7'5.2" / 2,265 mm
1,010 cu.ft. / 28.6 cu.m.

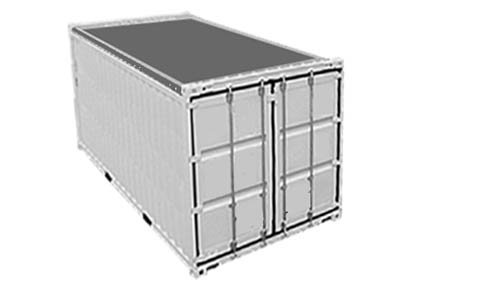

20' Open Top Container
(20' * 8' * 8'6"OPEN TOP)
*
Length
Width
Height
CBM
Inside
19' 4" / 5,894 mm
7' 8.5" / 2,352 mm
7' 8.7" / 2,348 mm
Overall
19' 10.5" / 6,058 mm
8' / 2,438 mm
8' 6" / 2,591 mm
Door Opening
7' 8.1" / 2,340 mm
7' 5" / 2,280 mm
1,150 cu.ft. / 32.50 cu.m.

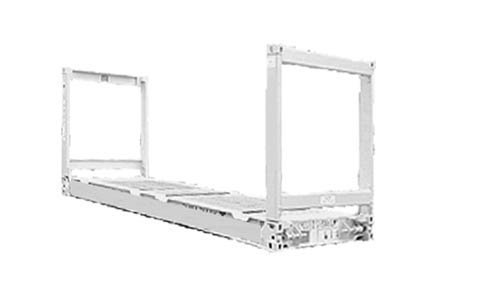

20' Flat Frame
(20' * 8' * 8'6"FLAT RACK)
*
Length
Width
Height
CBM
Inside
19' 2.5" / 5,896 mm
7' 2.4" / 2,194 mm
7' 3.9" / 2,233 mm
Overall
19' 10.5" / 6,058 mm
8' / 2,438 mm
8' 6" / 2,591 mm
Cargo Capacity
1017.6 cu.ft. / 28.8 cu.m.

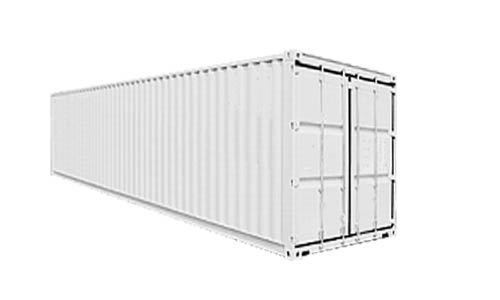

40' General Container
(40' * 8' * 8'6" DRY VAN)
*
Length
Width
Height
CBM
Inside
39' 5.4" / 12,025 mm
7' 8.6" / 2,352 mm
7' 10.2" / 2,393 mm
Overall
40' / 12,192 mm
8' / 2,438 mm
8' 6" / 2,591 mm
Door Opening
7' 8.1" / 2,340 mm
7' 5.8" / 2,280 mm
2,390 cu.ft. / 67.68 cu.m.

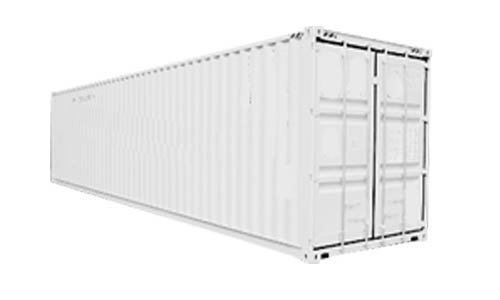

40' High Cube Container
(40' * 8' * 9'6" HIGH CUBE)
*
Length
Width
Height
CBM
Inside
39' 5.7" / 12,031 mm
7' 8.6" / 2,352 mm
8' 10.3" / 2,700 mm
Overall
40' / 12,192 mm
8' / 2,438 mm
9' 6" / 2,896 mm
Door Opening
7' 8.1" / 2,340 mm
8' 5.8" / 2,585 mm
2,696 cu.ft. / 76.34 cu.m.

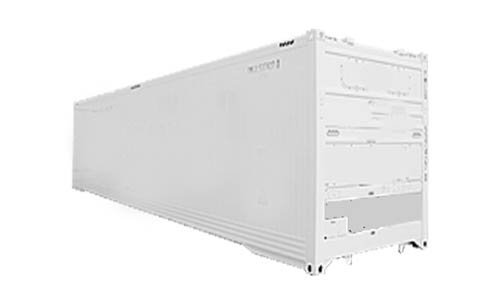

40 ' Refrigerated High Cube Container
(40' * 8' * 9'6" REEFER HIGH CUBE)
*
Length
Width
Height
CBM
Inside
37' 11.8" / 11,577 mm
7' 6.3" / 2,294 mm
8' 4.2" / 2,546 mm
Overall
40' / 12,192 mm
8' / 2,438 mm
9' 6" / 2,896 mm
Door Opening
7' 6.2" / 2,290 mm
8' 5.1" / 2,569 mm
2,390 cu.ft. / 67.7 cu.m.

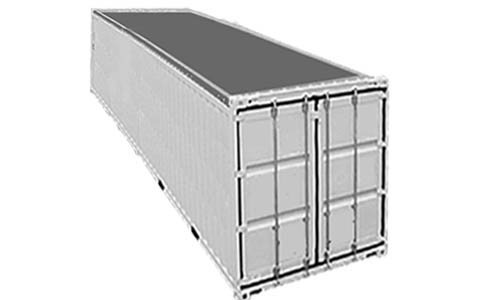

40' Open Top Container
(40' * 8' * 8' 6"OPEN TOP)
*
Length
Width
Height
CBM
Inside
39' 5.5" / 12,032 mm
7' 8.6" / 2,352 mm
7' 7.7" / 2,348 mm
Overall
40' / 12,192 mm
8' / 2,438 mm
8' 6" / 2,591 mm
Door Opening
7' 8.1" / 2,340 mm
7' 5" / 2,280 mm
1,150 cu.ft. / 65.9 cu.m.

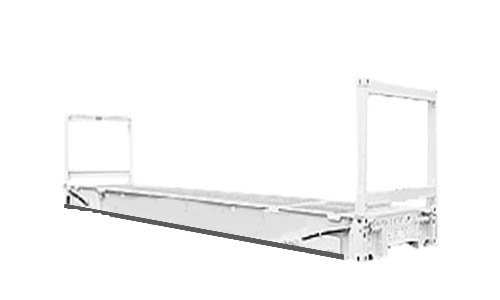

40' Flat Frame
(40' * 8' * 8'6"FLAT RACK)
*
Length
Width
Height
CBM
Inside
39' 4" / 11,988 mm
7' 9.5" / 2,374 mm
6' 5.1" / 1,959 mm
Overall
40' / 12,192 mm
8' / 2,438 mm
8' 6" / 2,591 mm
Cargo Capacity
1,826 cu.ft. / 51.7 cu.m.

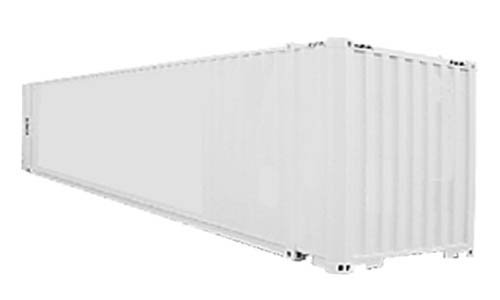

45' High Cube Container
(45' * 8' * 9'6" HIGH CUBE)
*
Length
Width
Height
CBM
Inside
44' 5.7" / 13,556 mm
7' 8.6" / 2,352 mm
8' 10.1" / 2,697 mm
Overall
45' / 13,716 mm
8' / 2,438 mm
9' 6" / 2,896 mm
Door Opening
7' 8.1" / 2,340 mm
8' 5.8" / 2,585 mm
3,040 cu.ft. /86.0 cu.m.
Air Freight
Container
❯
Refrigerated Containers
❯
Palletized
❯
Frame
❯
The container is suitable for carrying general cargo, baggage and mail.

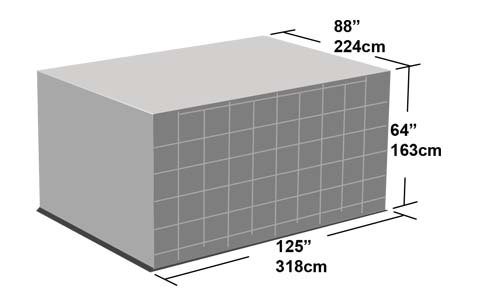

Container
-AAP
Content Volume
Load weight
Max Weight
Load-fit Models
371 cu. ft., 10.51 mc
220 kg
4,626 kg
747, 747F, 777, Airbus

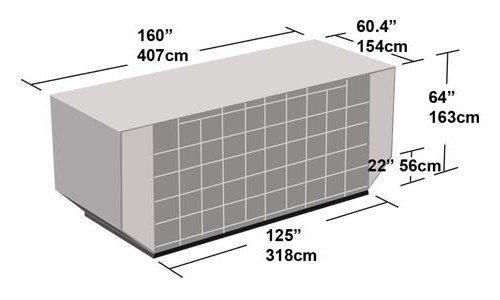

Container
-ALF
Content Volume
Load weight
Max Weight
Load-fit Models
310 cu. ft., 8.78 mc
157 kg
3,175 kg
747, 747F, 777, Airbus

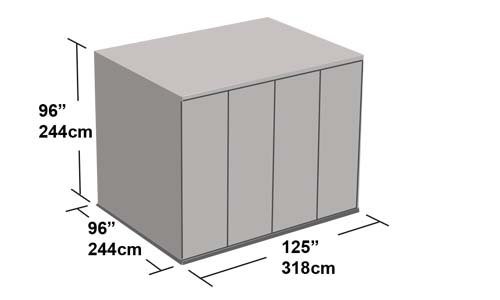

Container
-AMA
Content Volume
Load weight
Max Weight
Load-fit Models
621 cu. ft. 17.58mc
477 kg
6,804 kg
747F

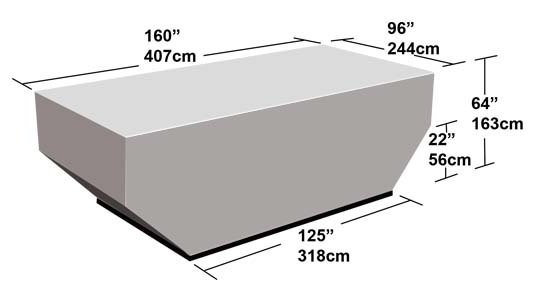

Container
-AMF
Content Volume
Load weight
Max Weight
Load-fit Models
516 cu. ft. 14.6 mc
315 kg
5,035 kg
747, 747F, 777, Airbus

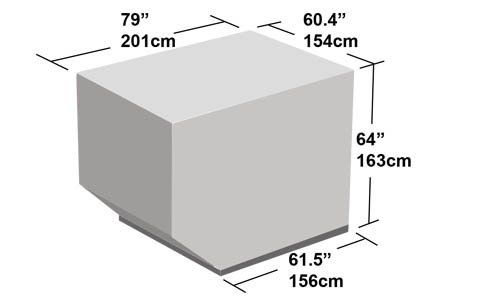

Container
-AKE
Content Volume
Load weight
Max Weight
Load-fit Models
152 cu. ft, 4.3mc
73 kg / 100 kg
1,588 kg
747, 747F, 777, Airbus

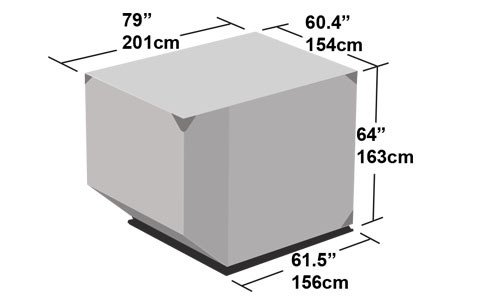

Refrigerated containers are mainly used to transport fresh goods, such as fruits, vegetables, seafood and so on. Refrigerated containers can be used in Australian locks. Inside the other set dry refrigerator thermostat.
Refrigerated Containers
-RKN
Content Volume
Load weight
Max Weight
Load-fit Models
125.41 cu. ft., 3.55 mc
190 kg
1,588 kg
747, 747F, 777, Airbus
The set plate is a flat aluminum plate. The goods are placed on board and fixed by rope net.

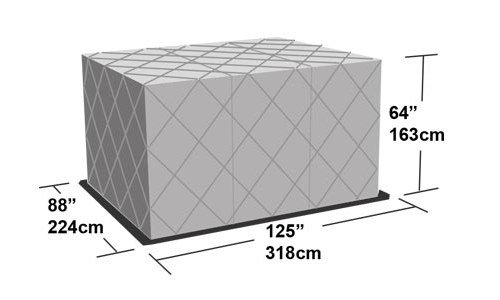

Palletized
-P1P. PAG
Content Volume
Load weight
Max Weight
Load-fit Models
Base: 88" x 125" Height: 64" (Passenger flight), 96" (Q6 Contour),
118" (Q7 Contour)
114 kg
4,626 kg (LD) 6,033 kg (MD)
747, 747F, 777, Airbus

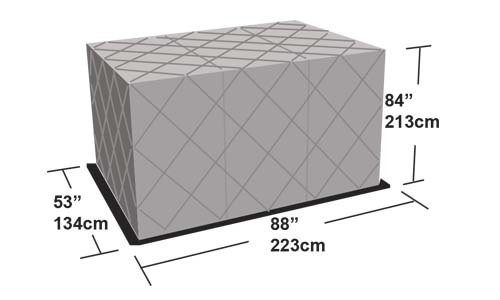

Palletized
-PEB
Content Volume
Load weight
Max Weight
Load-fit Models
Base: 53" x 88" Height: 84"
55 kg
1,800 kg (B-HIH - 1,300 kg)
747F

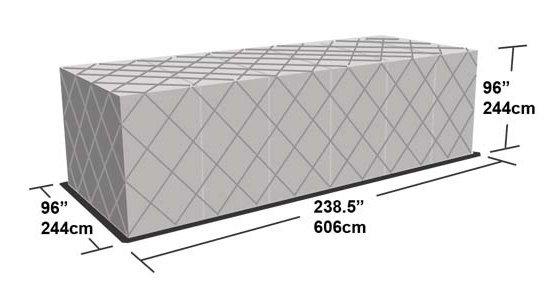

Palletized
-PGA
Content Volume
Load weight
Max Weight
Load-fit Models
Base: 96" x 238.5" Height: 96" (Q6 Contour), 118" (Q7 Contour)
565 kg
13,608 kg
747F

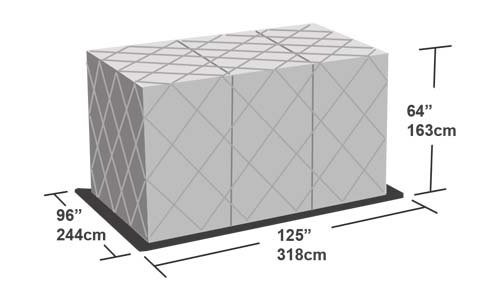

Palletized
-PMC. PQP. P6P
Content Volume
Load weight
Max Weight
Load-fit Models
Base: 96" x 125" Height: 64" (passenger flight), 96" (Q6 Contour),
118" (Q7 Contour)
120 kg
5,035 kg (LD) 6,804 kg (MD)
747, 747F, 777, Airbus

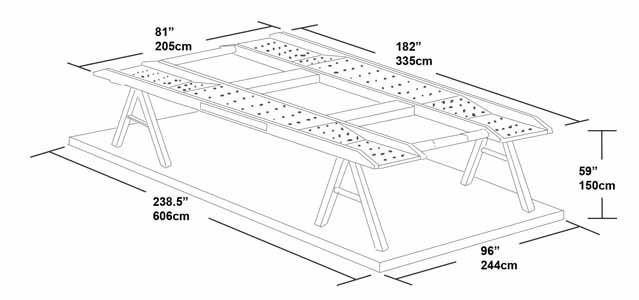

The frame is placed on the PGA board so that the two cars can be stacked together.
Frame
-VZA. VRA
Content Volume
Load weight
Max Weight
Load-fit Models
For PGA20 feet of the Set board
319 kg (2 bracket 139KG, platform 180KG)
2,500 kg (on board) 9,300 kg (maximum)
747F main cargo compartment
